Nederman : Hoses and Cable Reels

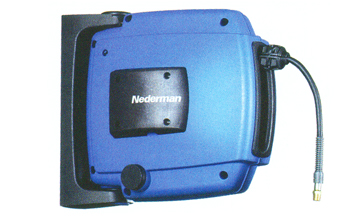

High quality, functional and easy to use hose reel for industrial use or for DIY workshops. Robust design in high-impact composite ma-terials. Fitted with a pivoting wall bracket that simply snaps onto the reel for ease of installation and a unique safety lock for secure service. Well-suited for use with pneumatic tools, staplers, blow gun etc.
• Snap-on wall bracket
• Unique safety ratchet
• Drum with double ball-bearings
• Hose with swagged nipple and hose protector
• Easy service
| Media | Max. working pressure MPa (psi) | Distribution hose int. mm(in) | Distribution hose Length, m | Connection hose int. mm (in) | Connection hose Length, m | Distribution hose adapter | Weight , kg | Part no. |
|---|---|---|---|---|---|---|---|---|
| Air / Water | 1, 2 (175) | 6 (1 / 4) | 12 | 10 ( 3 / 8) | 1 | 1 / 4 (male) | ~3 | 30800220 |
| FE841 Auto. Start / Stop | 1, 2 (175) | 8 (5 / 16) | 8 | 10 ( 3 / 8) | 1 | 1 / 4 (male) | ~3 | 30800420 |
High quality, functional and easy to use hose reel for industrial use or for DIY workshops. Robust design in high-impact composite materials. Fitted with a pivoting wall bracket that simply snaps onto the reel for ease of installation and a unique safety lock for secure service. Well-suited for use with pneumatic tools, Staplers, blow gun etc.
• Snap-on wall bracket
• Unique safety ratchet
• Drum with double ball-bearings
• Hose with swagged nipple and hose protector
• Easy service
| Media | Max. working pressure MPa (psi) | Distribution hose int. mm(in) | Distribution hose Length, m | Connection hose int. mm (in) | Connection hose Length, m | Distribution hose adapter | Weight , kg | Part no. |
|---|---|---|---|---|---|---|---|---|
| Air / Water | 1, 2 (220) | 8 (5 / 6) | 12 | 10 ( 3 / 8) | 1 | 1 / 4 (male) | ~4 | 30800230 |
| FE841 Auto. Start / Stop | 1, 2 (220) | 10 (3 / 8) | 10 | 10 ( 3 / 8) | 1 | 3 / 8 (male) | ~4 | 30800430 |

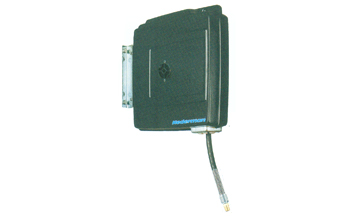

Medium-sized steel-cased hose reel for wall or ceiling mounting. Highly suitable for applications in vehicle repair and maintenance workshops. Supplied with loose snap-on bracket for ease of installation.
• Spring power can easily be adjusted from the outside
• Fast and easy to service
• Simple hose replacement without dismant ling the reel

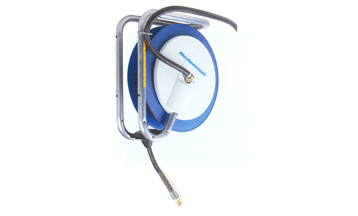

Medium-sized reel in robust open design. Thanks to the open design, the reels are very easy to service, maintain and keep clean. Can be installed on wall or on the ceiling. Versatile and easily installed in industrial and workshop environments.
• Outlet position can be adjusted for optimum pull-out and pull-in angle.
• Spring power can easily be adjusted from the outside.
• Robust and flexible design.
Large open hose reel made. of die-cast powdwer - coated aluminium, making the reel very robust and corrosion - resistant Easliy accommodates long and heavy hoses. Fitted with ball bearings in drum and swivel to minimize friction.
• Robust, high - impact and corrosion - resistant.
• Adjustable outlet for optimum reeling angle.
• Easy service and cleaning
