GCE : Bulk Rubber Hoses

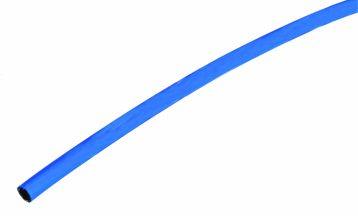

• Inner tube: Synthetic rubber resistant to the welding gases
• Reinforcement: High tensile synthetic textile.
• External cover: Blue synthetic rubber resistant to abrasion and weather
• Temperature: -20°C / +60°C
• Safety factor: 3 : 1
• Marking: In compliance with the below mentioned standard.
• Working pressure: 20 bar
• Bursting pressure: 60 bar

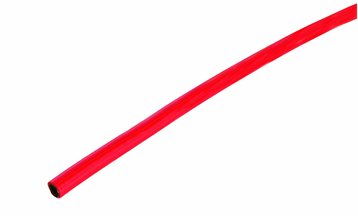

• Inner tube: Synthetic rubber resistant to the welding gases
• Reinforcement: High tensile synthetic textile.
• External cover: Red synthetic rubber resistant to abrasion and weather
• Temperature: -20°C / +60°C
• Safety factor: 3 : 1
• Marking: In compliance with the below mentioned standard.
• Working pressure: 20 bar
• Bursting pressure: 60 bar

• Inner tube: Synthetic rubber resistant to the welding gases
• Reinforcement: High tensile synthetic textile.
• External cover: Red synthetic rubber resistant to abrasion and weather
• Temperature: -20°C / +60°C
• Safety factor: 3 : 1
• Marking: In compliance with the below mentioned standard.
• Working pressure: 20 bar
• Bursting pressure: 60 bar

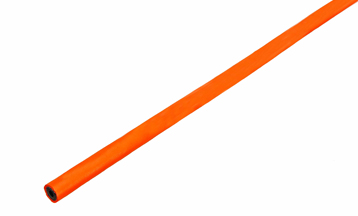

• Inner tube: Synthetic rubber resistant to LPG and Propane/Butane gases
• Reinforcement: High tensile synthetic textile
• External cover: Orange synthetic rubber resistant to abrasion and weather
• Temperature: -20°C / +60°C
• Safety factor: 3 : 1
• Marking: In compliance with the below mentioned standard.
• Working pressure: 20 bar
• Bursting pressure: 60 bar

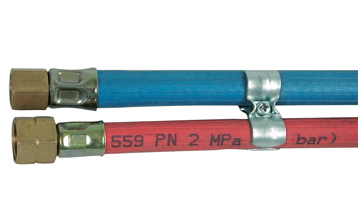

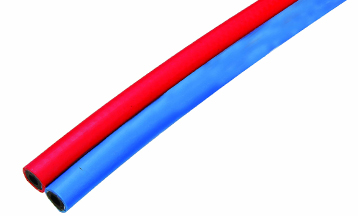

• Inner tube:Synthetic rubber resistant to the welding gases
• Reinforcement:High tensile synthetic textile
• External cover:Blue/Red synthetic rubber resistant to abrasion and weather
• Temperature: -20°C / +60°C
• Safety factor: 3 : 1
• Marking: In compliance with the below mentioned standard.
• Working pressure: 20 bar
• Bursting pressure: 60 bar

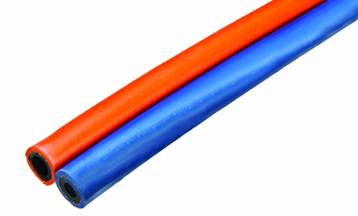

• Inner tube OXY: Synthetic rubber resistant to the welding gases
• Inner tube PROP: Synthetic rubber resistant to LPG and Propane/Butane gases
• Reinforcement: High tensile synthetic textile
• External cover: Blue/Orange synthetic rubber resistant to abrasion and weather
• Temperature: -20°C / +60°C
• Safety factor: 3 : 1
• Marking: In compliance with the below mentioned standard
• Working pressure : 20 bar
• Bursting pressure: 60 bar

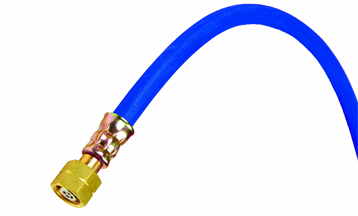

• Inner tube:Synthetic rubber resistant to the welding gases
• Reinforcement: High tensile synthetic textile.
• External cover:Blue synthetic rubber resistant to abrasion and weather
• NON RETURN VALVE in the outlet
• Temperature: -20°C / +60°C
• Safety factor: 3 : 1
• Marking:In compliance with the below mentioned standard.
• Working pressure: 20 bar
• Bursting pressure: 60 bar
• Standards: ISO 3821 (hose) EN 1256 (hose assembly)

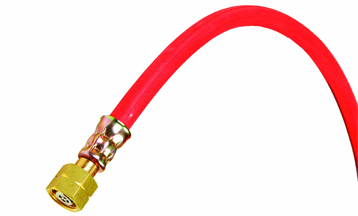

• Inner tube: Synthetic rubber resistant to the welding gases
• Reinforcement:High tensile synthetic textile.
• External cover: Red synthetic rubber resistant to abrasion and weather
• NON RETURN VALVE in the outlet
• Temperature: -20°C / +60°C
• Safety factor: 3 : 1
• Marking:In compliance with the below mentioned standard.
• Working pressure: 20 bar
• Bursting pressure: 60 bar
• Standards: ISO 3821 (hose) EN 1256 (hose assembly)

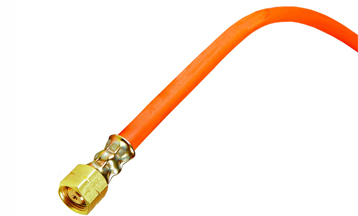

• Inner tube: Synthetic rubber resistant to LPG and Propane/Butane gases
• Reinforcement: High tensile synthetic textile
• External cover: Orange synthetic rubber resistant to abrasion and weather
• Temperature: -30 °C / +70 °C
• Safety factor: 3 : 1
• Marking: In compliance with the below mentioned standards
• Working pressure: 30 bar
• Bursting pressure: 75 bar
• Standards: EN 16436-1 (hose) EN 1256 (hose assembly)
• Standard EN 16436-1 replaces DIN 4815-1, during 2015

• Inner tube: Synthetic rubber resistant to the welding gases
• Reinforcement: High tensile synthetic textile
• External cover: Blue/Red synthetic rubber resistant to abrasion and weather
• NON RETURN VALVE in the outlet
• Temperature: -20°C / +60°C
• Marking: In compliance with the below mentioned standard
• Working pressure: 20 bar
• Bursting pressure: 60 bar
• In compliance with EN 1256 (hose assembly), ISO 3821 (hose)

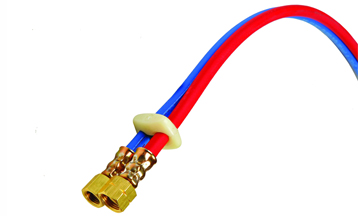

• Inner tube: Synthetic rubber resistant to the welding gases
• Reinforcement: High tensile synthetic textile
• External cover: Blue/Red synthetic rubber resistant to abrasion and weather
• With terminal clamp
• Temperature: -20°C / +60°C
• Marking: In compliance with the below mentioned standard
• Working pressure: 20 bar
• Bursting pressure: 60 bar
• In compliance with EN 1256 (hose assembly), ISO 3821 (hose)

• Inner tube: Synthetic rubber resistant to the welding gases
• Reinforcement: High tensile synthetic textile.
• External cover: Blue/Red synthetic rubber resistant to abrasion and weather
• With terminal clamp
• Temperature: -20°C / +60°C
• Marking: In compliance with the below mentioned standards
• Working pressure: 20 bar
• Bursting pressure: 60 bar
• In compliance with EN 1256 (hose assembly), ISO 3821 (hose)

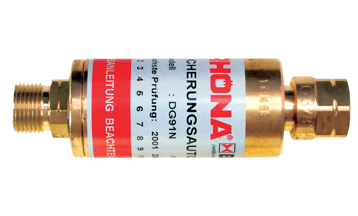

FEATURES
• Maximum number of safety features defined by EN730-1
• High visibility trip/reset lever coupled with quick acting reset even when pressurised
• Angled inlet to minimise hose damage
• 100% production flame tested for Flashback resistance
• Inspection dates can be marked on product for easy reference

FUNCTIONS
• Flame arresting element FA
• Non return valve NV
• Pressure sensitive cut off valve PV
• Temperature sensitive cut off valve TV
• Reset mechanism to clearly advise unit activation RM

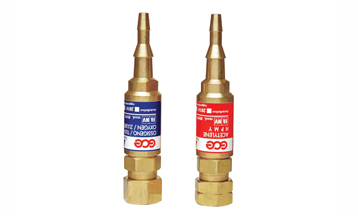

FEATURES
• FA Sintered flame arresting element
• NV Non return valve to prevent reverse flow of gases
• TV Thermal trip device, activated by heat to permanently cut off the gas supply

FOUR MODELS ARE AVAILABLE FOR CONNECTION TO:
• Regulator (model RP)
• Hose line to Hose line (model TT)
• Torch to hose line (model TF)
• Torch threaded inlet/outlet (model FF)

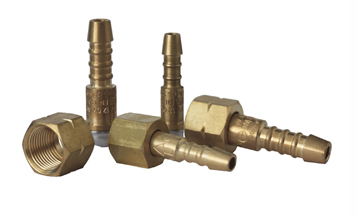

Max service pressure is 16 bar within a temperature range of -30°C to +50°C. The design is compact, not bigger than an ordinary hose nipple. Still the pressure losses involved are insigni cant and the set working pressure therefore stay unchanged. GCE SAFEGUARD1 / BV 12 is manufactured in accordance with European standard EN730-2.

• FA Sintered flame arresting element
• NV Non return valve to prevent reverse flow of gases
• TV Thermal trip device, activated by heat to permanently cut off the gas supply
