Extraction Arm Standard
Extraction Arm Standard

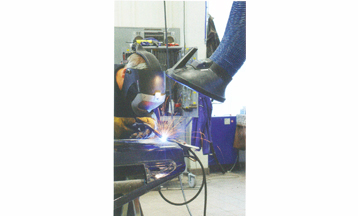

Nederman standard extraction arm is spe-cially designed for working environments with fumes, vapours or non-explosive dust, where the demands for higher airflows and temperatures are moderate. Typical workplaces can be welding schools and different types of applications in light production. The applications can be welding, grinding, or other industrial processes where an easily positioned arm is required. The arm is available in two lengths, 2 and 3 m, and equipped with a high efficiency extraction hood.
• The arm is flexible in all directions and simple to position
• Designed for wall mounting with integrated wall bracket/90° bend
• Can be rotated 180°
• Can be equipped with a damper placed in the bend as an accessory
• The hood can be tilted in all directions

Description Working range, m Airflow, m / h Connection, mm Max. fume temperature, 0c Noise level at hood, dB (A) Weight, kg Part no.
Standard arm, 2 m 2 600 - 900 160 70 67 11 10500238
Standard arm, 3 m 3 600 - 900 160 70 67 13 10500338


Extraction Arm Telescopic
Extraction Arm Telescopic

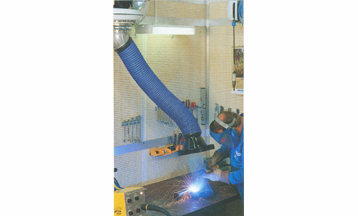

The Nederman telescopic arm is specially designed for working environments with fumes, vapours or non-explosive dust, where the space is limited. Typical workplaces can be welding schools or for production in small welding booths. The applications can be welding, grinding, or other industrial processes where a small, easily positioned arm is required. The reach of the arm is between 0.9 and 1.6 m.
• The arm is flexible in all directions and simple to position and to extend
• The arm has a balanced telescopic action by an adjustable balance block
• The assembly is suspended by a swivel, which allows it to rotate 360°
• The hood can be tilted in all directions

Description Working range, m Airflow, m / h Connection, mm Max. fume temperature, 0c Noise level at hood, dB (A) Weight, kg Part no.
Telescopic arm with metal hood 0,9-1,6 600 - 1000 160 70 76 12 10500238
Telescopic arm with oridinal hood 0,9-1,6 600 - 1000 160 70 76 12 10500338




Extraction arm Original
Extraction arm Original

• A swivel allows the product to rotate 360°.
• The arm is flexible in all directions and simple to position.
• The product can be mounted in combination with different brackets, extension arms, on a rail system or on fixed or mobile filter equipment.
• The product is equipped with a damper in the hood as standard.
• The hood on all models can be tilted in all directions.

Description Working range, m Airflow, m / h Connection, mm Max. fume temperature, 0c Noise level at hood, dB (A) Weight, kg Part no.
Original arm 2 m 2 700 - 1000 150 / 160 70 63-75 11 10554235
Original arm 3 m 3 700 - 1000 150 / 160 70 63-75 13 10554335
Original arm 4 m, vertical 4 700 - 1000 150 / 160 70 63-75 16 10554435
Original arm 4 m, horizontal 4 700 - 1000 150 / 160 70 63-75 16 10554535



Extraction arm NEX MD
Extraction arm NEX MD

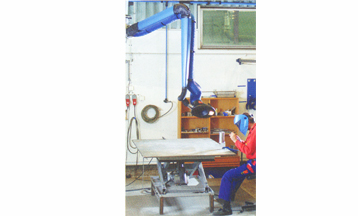

• Robust swivel - allows 360° rotation.
• Encapsulated support mechanism protects the arm against dust and dirt.
• Can be mounted on brackets, extension arms and rail systems.
• With a damper in the hood - saves energy when not in operation.
• The hose is easy to remove for cleaning.
• The hood can be tilted in all directions.

Description Working range, m Airflow, m / h Connection, mm Max. fume temperature, 0c Noise level at hood, dB (A) Weight, kg Part no.
NEX MD, 2 m 2 900 - 1300 160 70 66 16 10561032
NEX MD, 3 m 3 900 - 1300 160 70 63 20 10561132
NEX MD, 4 m 4 900 - 1300 160 70 63 27 10561232
NEX MD, 5 m 5 900 - 1300 160 70 63 32 10561332


Extraction arm NEX HD
Extraction arm NEX HD

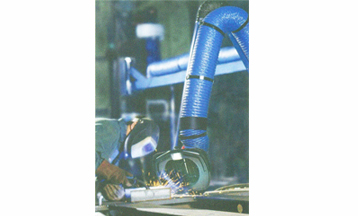

• Robust swivel, which allows the product to rotate 360°.
• Support mechanism of the arms is a capsulated which protects against dirt.
• Can be mounted in combination with different brackets, extension arms or on rail systems.
• Equipped with a damper in the hood as standard.
• The hose is easy to remove for cleaning.
• Minimized pressure drop and a low noise level.

Description Working range, m Airflow, m / h Connection, mm Max. fume temperature, 0c Noise level at hood, dB (A) Weight, kg Part no.
NEX HD, 2 m 2 1000 - 1900 200 120 66 17 10561032
NEX HD, 3 m 3 1000 - 1900 200 120 63 21 10561132
NEX HD, 4 m 4 1000 - 1900 200 120 63 28 10561232
NEX HD, 5 m 5 1000 - 1900 200 120 63 33 10561332


Extension arm
Extension arm

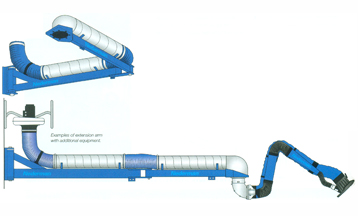

The Nederman extension arm, 4.2 m or 6.0 m, is designed to be used when extra reach is needed. Combine it with fume or dust extraction arms, or exhaust extraction equipment for cars or trucks. Made of robust steel profiles. Suspended by a pivoting wall bracket and equipped with a joint in the middle, which makes it flexible in all directions. It is possible to add other equipment to the extension arm, such as welding machines, and hose and cable reels.

• Robust swivel, which allows the product to rotate 360o.
• Support mechanism of the arms is a capsulated which protects against dirt.
• Can be mounted in combination with different brackets, extension arms or on rail systems.
• Equipped with a damper in the hood as standard.
• The hose is easy to remove for cleaning.
• Minimized pressure drop and a low noise level.



Fume extractor on rail
Fume extractor on rail

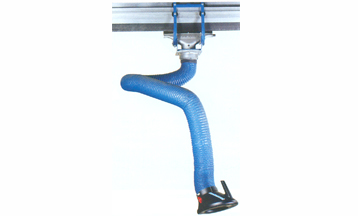

The Nederman fume extractor trolley with extractor arm, is intended to be used in combination with the rail Nederman ALU 150 when extraction from long working areas is required.

• One extraction arm can serve several work places.
• The trolley is easily moved along the rail.
• The trolley fits Nederman extraction arms shown below.



Bodywork extraction arm
Bodywork extraction arm

The Nederman fume extractor trolley with extractor arm, is intended to be used in combination with the rail Nederman ALU 150 when extraction from long working areas is required.

• One extraction arm can serve several work places.
• The trolley is easily moved along the rail.
• The trolley fits Nederman extraction arms shown below.

Description Working range, m Airflow, m / h Connection, mm Max. fume temperature, 0c Noise level at hood, dB (A) Weight, kg Part no.
Bodywork arm, 5 m 5 700 - 1000 150 / 160 70 65 - 70 18 10554935


Windscreen extraction arm
Windscreen extraction arm

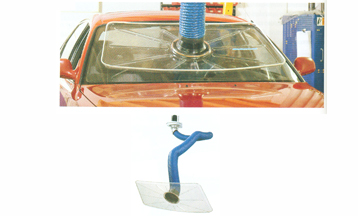

The Nederman windscreen extraction arm is based on the Original arm and specially designed for extraction of adhesive vapours generated when removing or replacing wind-screens. The arm is available in a length of 4 m and has a rectangular extraction hood with an elongated opening along the edge, designed to take care of the vapours when working with windscreen glue.

• Suspended by a swivel, which allows the product to rotate 360°.
• Flexible in all directions and simple to position.
• Can be mounted in combination with different brackets, extension arms or on rail systems.
• Equipped with a damper in the hood as standard.

Description Working range, m Airflow, m / h Connection, mm Max. fume temperature, 0c Noise level at hood, dB (A) Weight, kg Part no.
Windscreen hood with damper on an original 4m horizontal arm 4 700 - 900 150 / 160 70 65 - 70 17 10553535
windscreen hood with damper - 700 - 900 150 / 160 70 - 2 10372173


Welding and grinding table
Welding and grinding table
Welding and grinding table

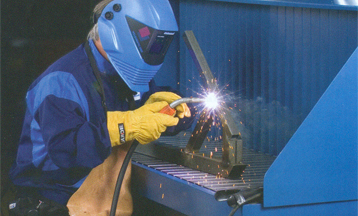

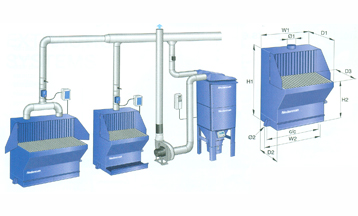

Industrial welding and grinding table for extracting fumes, dust and particles from welding and grinding operations. It can also be used in explosive environments, if earthed accordingly. The table is not suitable for cutting. The table can be used to suspend the welding torch when not in use. Underne-ath the working area a dust drawer takes care of the heavy dust. The drawer can easily be emptied from the front of the table. The duct connection for the external fan is located on top of the table and it is recommendable to use a filter device between the table and the fan.

• Easy to install.
• Sturdy industrial design.
• Flexible in terms of installation possibilities.
• Flexible extraction capacity.
• Maintenance friendly
